| 1976 Grumman AA5A Cheetah |
| Aircraft Type | Single Engine Propeller |
| Make | Grumman |
| Condition | Used Aircraft |
| Sale Type | For Sale |
| Currency | AU $ |
| Price | $52,900 |
| Location | Western Australia, Australia |
| Registration No | VH-SAB |
| Serial Number | AA5A-0225 |
| Year Built | 1976 |

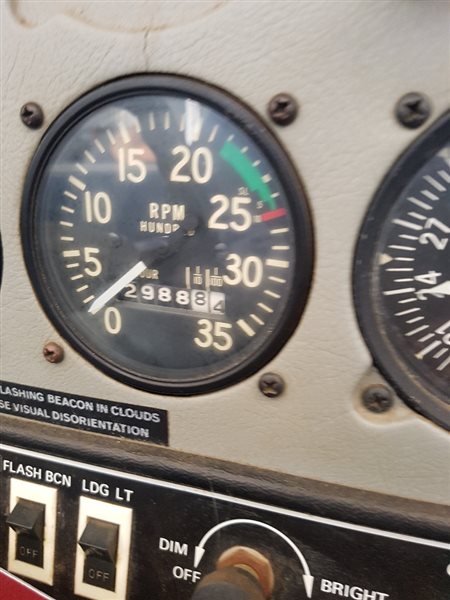

| Total Time Airframe | 2989hrs |
| Comments |
|---|
This aircraft has been a good servant of its 35 year+ owner over the years, and offers low time with almost zero time on both engine and propeller. NOTE: BUYERS SHOULD NOTE THAT THIS AIRCRAFT IS NOT CURRENTLY AIRWORTHY. CRACKED WINDSCREEN NEEDS REPLACEMENT, WING TIPS & FAIRINGS (REPAIRED & SUPPLIED) TO BE RE-TRIMMED AND FITTED. OTHER WORKS MAY BE REQUIRED FOR FULL MR.
|
| Engine Specifications |
|---|
Engine type: Lycoming O-320 E2G (160HP) Engine serial number: L-45883-27A Engine Hours: 1988.4 To run (11.6 hours) Engine history: Overhauled 2/6/02 Hawker Pacific and 12 years. Last annual 23/1/20 Inspection results: Annual inspection, Oil filter inspection carried out. Nil metal. Compressions: 78, 78, 78, 72 / 80
Propeller type: McCaulley IC172BTM 73" 59 Propeller hours: 2188.4hrs to run |
| Avionics |
|---|
Avionics list: Standard Grumman Cheetah avionics A/P disconnected. |
| Additional Features |
|---|

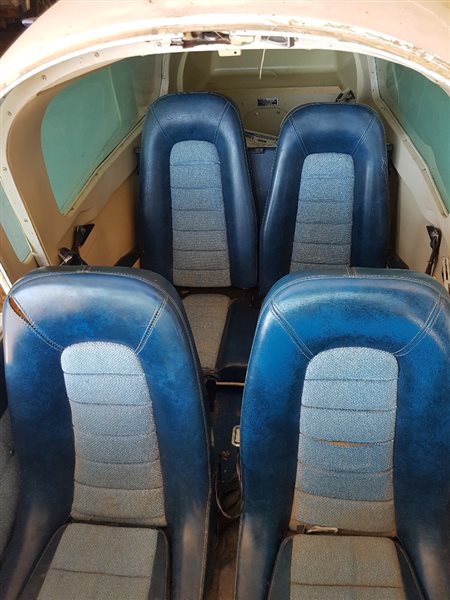

Other notes: - Internally factory painted, some minor surface corrosion recently rectified - STC SE682NE for O-320 higher compression conversion carried out and logged

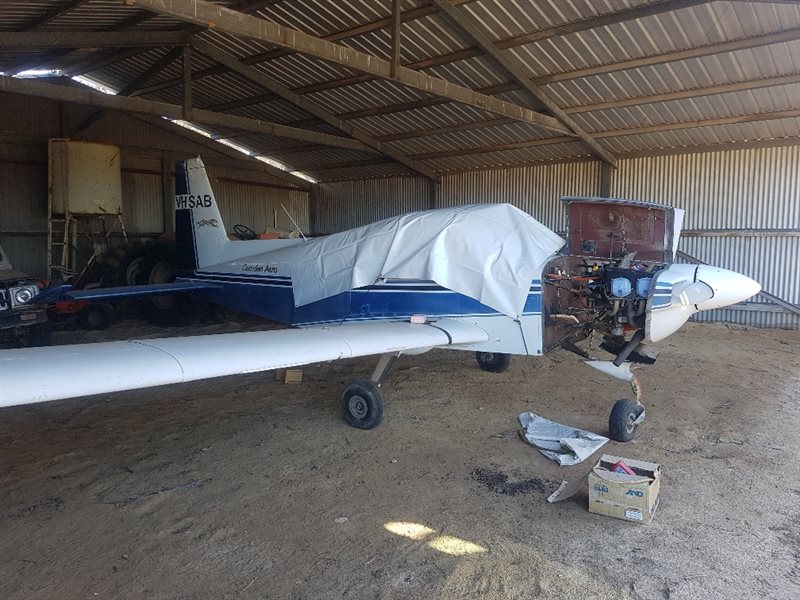

Accident history / details: NIL Storage history: Hangered all life
Location airport: Northam WA Work that needs to be completed / pending (list): NIL
Cruise speed: 105kts BEW: / MTOW: 627.5kg / 998kg Fuel Capacity / no. of tanks: 94litres per side = 188 litres (useable) Aircraft logbooks complete & available? Yes |
