| 2016 Vans RV10 Aircraft |
| Aircraft Type | LSA/Experimental |
| Make | Vans |
| Model | RV10 |
| Condition | Used Aircraft |
| Sale Type | Expressions of Interest |
| Location | Western Australia, Australia |
| Registration No | VH-MWG |
| Serial Number | 41490 |
| Year Built | 2016 |
| Total Time Airframe | 311 |
| Comments |
|---|
Superbly built RV10 under the supervision of SAAA TC's. Incorporates the award winning Garmin G3X integrated avionics suite with many aftermarket upgrades. Fresh annual completed (Exp Feb 2023).
|
| Engine Specifications |
|---|
Factory new Lycoming IO-540 and Hartzell blended foil prop (both TT 350hrs). Hartzell prop governor. Electroair electronic ignition and L/H slick magneto with Slickstart. Burns 41L at 60%power LOP @ 8500ft and 158KTAS.
|
| Avionics |
|---|

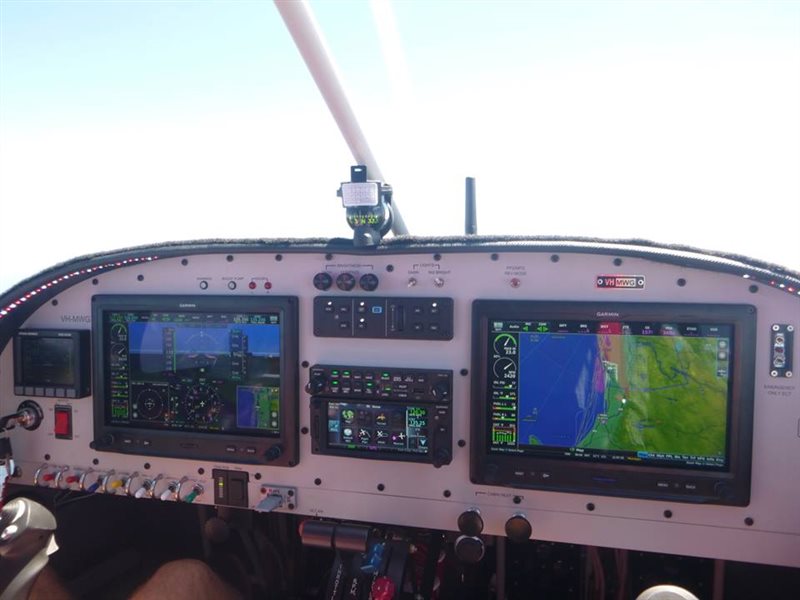

- Dual Garmin G3X Touch 10 inch displays
- Garmin GTN650 (GNSS WAAS navigator with VOR and radio)
- Dual external GPS antennas
- Garmin GMC305 fully integrated autopilot with Garmin GSA28 servos
- Garmin GTX23ES ADSB out compliant transponder
- Garmin GDL39 ADSB in (internally mounted)
- VPX Pro electronic circuit breakers
- Garmin GTR20 remote radio
- Garmin GMA245 bluetooth audio panel
- Dynon D10A with inbuilt backup battery (now TSO'ed)
- Garmin GAD29, GEA24 , GMU22, GSU25 and GAP26 (heated pitot + Gretz mount)
- Full engine sensors fitted (CHT and EGT each cylinder)
- TCW Lithium battery backup power for critical
Garmin flight instruments
- ACK ELT fitted.
- 2 USB charge ports
|
| Interior |
|---|
- Aerosport carbon overhead with 4 air vents and 2 overhead Aveo touch lights
- Aerosport side panels and vents
- Aerosport leather seats with Crow 5-point harness front and rear
- Aeropsort low profile external door handle and internal door handle
- PlaneAround 3rd door cam latch upgrade
- Planearound door hinge bracket and wheel pant extensions
- McMaster-Carr door seal upgrade.
- Upgraded throttle quadrant
- Halon fire extinguisher
- Andair fuel selector upgrade
|
| Exterior |
|---|
- Upgraded Goodyear Flight Custom III mains (Kevlar belted)
- Upgraded Behringer nosewheel with Michelin tubeless tire.
- Upgraded custom polished spinner
- 3 tie-down rings
- Aeroleds wingtip/tail lighting and 3 LED
landing/taxi lights (2 in wing, 1 in cowl)
- Professional 3 colour paint job
|
*PLEASE NOTE: Aircraft specifications are subject to verification by the purchaser. It is up to you as the purchaser to conduct your due diligence. Unless given to you in writing by the seller, no warranties are implied or given. Aircraft or parts may be withdrawn from sale at any time. If the price does not contain the notation that it is the total price, the price may or may not include costs such as Stamp Duty, Transfer fees, GST and other State or Federal charges. Please confirm price, fees, charges and features with the seller of the Aircraft or Part.
