2008 Kitfox Series 7 Aircraft

Single Engine Propeller

Sold

Sold on: 16/09/2022
Priced as: $84,900

back to search

Details

2008 Kitfox Series 7 Aircraft
Aircraft Type	Single Engine Propeller
Make	Kitfox
Model	Series 7
Condition	Used Aircraft
Sale Type	For Sale
Currency	AU $
Price	$84,900
Location	Western Australia, Australia
Registration No	19-7889
Serial Number	SP0206-00
Year Built	2008
Total Time Airframe	182hrs

Comments
Most aviators know that the Kitfox Series 7 is one of the best performing, all-terrain STOL-cruisers, with excellent luggage storage, cabin width, visibility and comfort. And that's how it's marketed. Designed & made in the USA. Good Performance. Dependability. Comfort. Many will ask why this aircraft has been 'restored'. There's no accidents here. It was found to be a nice aircraft when it flew to the current owner last year, but it just needed some TLC. New owner then went to work; fuel lines, carbon fibre upgrades in baggage and seat areas, new side-windows installed, screens replaced, tips painted, and a long list of other improvements made. Estimated 1-2 weeks of assembly work to complete and fly again; original avionics is available, or new panel already designed, waiting for advanced avionics, if that is your choice. Airmaster propeller system completes the package.

Comments

Most aviators know that the Kitfox Series 7 is one of the best performing, all-terrain STOL-cruisers, with excellent luggage storage, cabin width, visibility and comfort. And that's how it's marketed. Designed & made in the USA. Good Performance. Dependability. Comfort.

Many will ask why this aircraft has been 'restored'. There's no accidents here. It was found to be a nice aircraft when it flew to the current owner last year, but it just needed some TLC. New owner then went to work; fuel lines, carbon fibre upgrades in baggage and seat areas, new side-windows installed, screens replaced, tips painted, and a long list of other improvements made.

Estimated 1-2 weeks of assembly work to complete and fly again; original avionics is available, or new panel already designed, waiting for advanced avionics, if that is your choice. Airmaster propeller system completes the package.

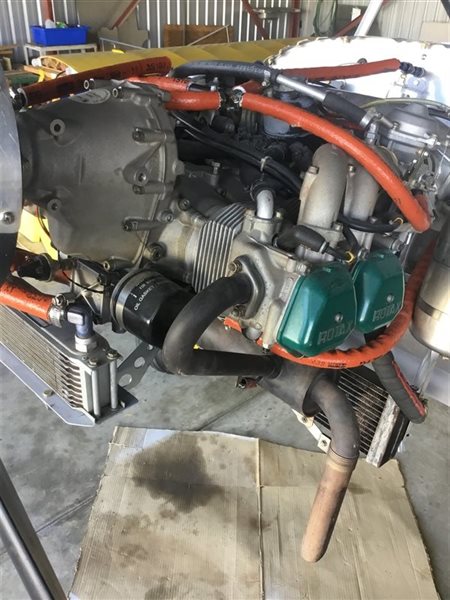

Engine Specifications
TT Engine: 182hrs TT (since factory new / 1200hr TBO) Compressions: 78/80 all cylinders 2022 Propeller: Warpdrive 3-blade carbon fibre with Airmaster propeller (CSU) TT Propeller: 114hrs (since factory new)

Engine Specifications

TT Engine: 182hrs TT (since factory new / 1200hr TBO)

Compressions: 78/80 all cylinders 2022

Propeller: Warpdrive 3-blade carbon fibre with Airmaster propeller (CSU)

TT Propeller: 114hrs (since factory new)

Avionics
Standard avionics: ASI, Trutrak ADI with GPS, Altimeter, Choice of Navaid or EZI Pillot single axis with two servos (compatible with either head), MGL Blaze TP-4 fuel flow / Pressure/Remaining, Oil T's/P's, Volts, CHT, Tacho (Rotax calibrated) with Hour meter A new avionics panel has been designed for: Airspeed, G5, Altimeter, UMA Tacho, MGL Blaze TP-4 EMS, MGL Blaze Vega FF-4 Fuel monitor, 660 Garmin, Garmin VHF and autopilot (only avionics listed above included).

Avionics

Standard avionics: ASI, Trutrak ADI with GPS, Altimeter, Choice of Navaid or EZI Pillot single axis with two servos (compatible with either head), MGL Blaze TP-4 fuel flow / Pressure/Remaining, Oil T's/P's, Volts, CHT, Tacho (Rotax calibrated) with Hour meter

A new avionics panel has been designed for: Airspeed, G5, Altimeter, UMA Tacho, MGL Blaze TP-4 EMS, MGL Blaze Vega FF-4 Fuel monitor, 660 Garmin, Garmin VHF and autopilot (only avionics listed above included).

Interior
9/10

Exterior
7.5/10

Additional Features
History: Aircraft first flew 2008 in the USA (Westport, Indiana) Imported 2011 with 68hrs Total Time Flown into Roy Hill (North of Newman, WA) in 2011 upon import Air Master propeller installed ($10,000) July 2011 Nose wheel removed in 2021 and tailwheel installed 2021 (Matco tailwheel & spring) Seller purchased August 2021 Works completed: - 3000psi 3/16 braided stainless new brake lines fitted 2021 - Protective gear brackets (with jack points) installed 2021 - Matco tailwheel & Kitfox spring installed - Patched fabric rubbing near rudder area, repaired cracks, removed PVC piping on electrical wiring - Static vent lines and cables to rear in split crinkle tubing - Floor of baggage compartment removed and replaced with carbon fibre floor and 1/8th foam sandwich - Rear turtle deck (one piece) replaced with new turtle deck, with hinge to allow easier baggage loading - Wing root area (rib) painted and carbon fibre inserted, with perspex inside for clear sight gauge view - Welded metal tags to airframe for accessories, seats etc… - Seats gelcoat removed and replaced with carbon fibre for added strength and weight savings (needs final clear coat) - Fabric repairs with double-thickness, painted back and colour matched on fuselage - 2 new fuel sight gauges installed - Fibre glass wingtips painted (currently removed) - Wing pitot tube tightened & inspection holes added to wings for maintenance - Wing struts stripped, primed and painted with 2-pack - Wings completed fuel line rubbers replaced April 2021 (including wings) - All internal fuel lines replaced with 'AN' fittings - Engine AD's (return line) completed, including recommended fuel pump attached - Carpets cleaned - Firewall back (trim tab lever needs castle nut/pin) and cable tie flexible brake lines etc… - Engine suggestions: magnet plug, soft start module, hoses to clean up etc... - Removed fibreglass lower door section and installed full perspex doors - Removed locking mechanism and replaced with Kitfox style locking mechanism including 2 notch system (ajar for air ventilation) - Re-sprayed yellow interior birdcage structure white and re-sprayed with white struts and white wing and horizontal stabiliser tips - Avionics panel is setup for Airspeed, G5, Altimeter, UMA Tacho, MGL Blaze TP-4 EMS, MGL Blaze Vega FF-4 Fuel monitor, 660 Garmin, Garmin VHF and autopilot. - New windscreen & roof included in sale, just arrived. Estimated work to complete: Some assembly, 2-3 other jobs details available. All told, estimated $1000.00 plus VHF radio and intercom (50-100 hours approx.) Cabin Width = 43 IN. Baggage Capacity = 68kg Stall (Flaps Full) = 37kts Takeoff (Ground Roll) = 290FT Landing (Ground Roll) = 290FT Fuel: 105 litres in 2 wing tanks Empty weight: 361kg MTOW: 600kg NOTE: This is a 'no-nonsense' sale please, on Vendor instructions. Sold as is. Photographs are of aircraft not fully assembled. Call for further information, logs and photos.

Additional Features

History:

Aircraft first flew 2008 in the USA (Westport, Indiana)

Imported 2011 with 68hrs Total Time

Flown into Roy Hill (North of Newman, WA) in 2011 upon import

Air Master propeller installed ($10,000) July 2011

Nose wheel removed in 2021 and tailwheel installed 2021 (Matco tailwheel & spring)

Seller purchased August 2021

Works completed:

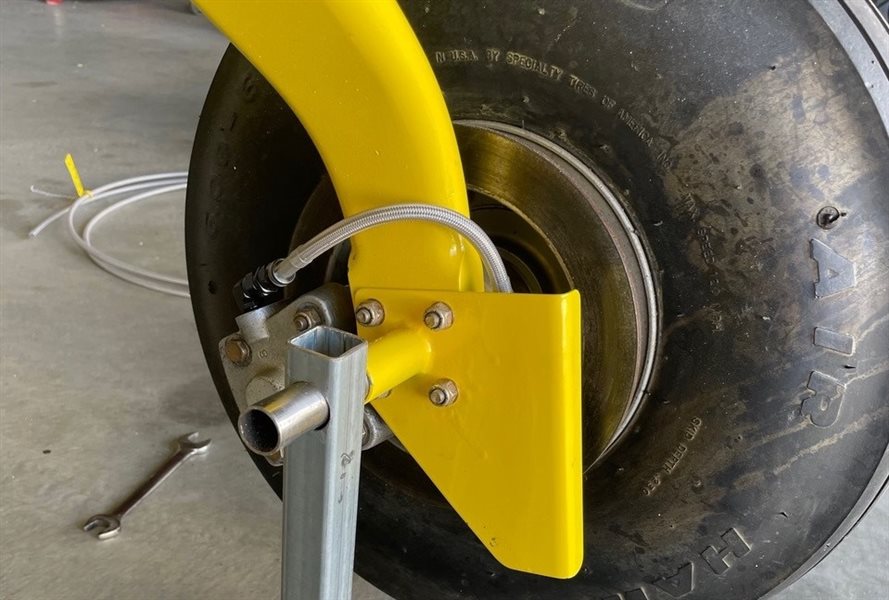

- 3000psi 3/16 braided stainless new brake lines fitted 2021

- Protective gear brackets (with jack points) installed 2021

- Matco tailwheel & Kitfox spring installed

- Patched fabric rubbing near rudder area, repaired cracks, removed PVC piping on electrical wiring

- Static vent lines and cables to rear in split crinkle tubing

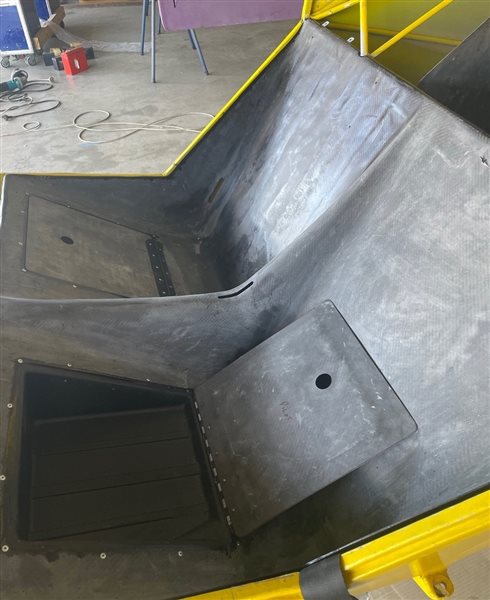

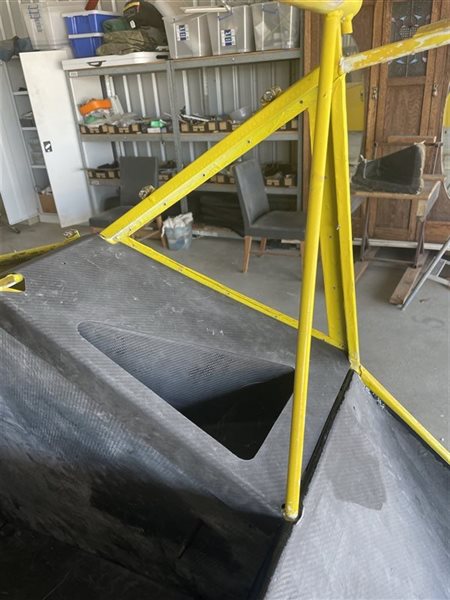

- Floor of baggage compartment removed and replaced with carbon fibre floor and 1/8th foam sandwich

- Rear turtle deck (one piece) replaced with new turtle deck, with hinge to allow easier baggage loading

- Wing root area (rib) painted and carbon fibre inserted, with perspex inside for clear sight gauge view

- Welded metal tags to airframe for accessories, seats etc…

- Seats gelcoat removed and replaced with carbon fibre for added strength and weight savings (needs final clear coat)

- Fabric repairs with double-thickness, painted back and colour matched on fuselage

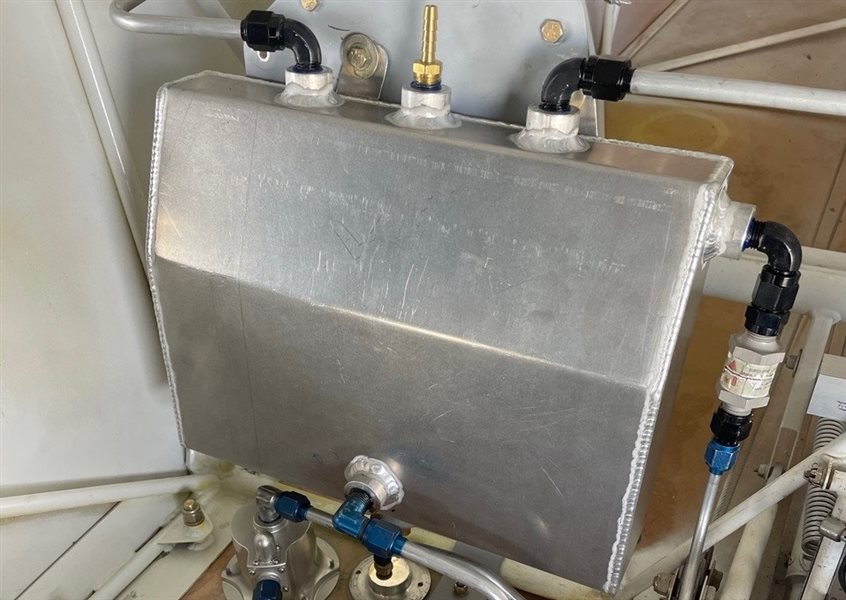

- 2 new fuel sight gauges installed

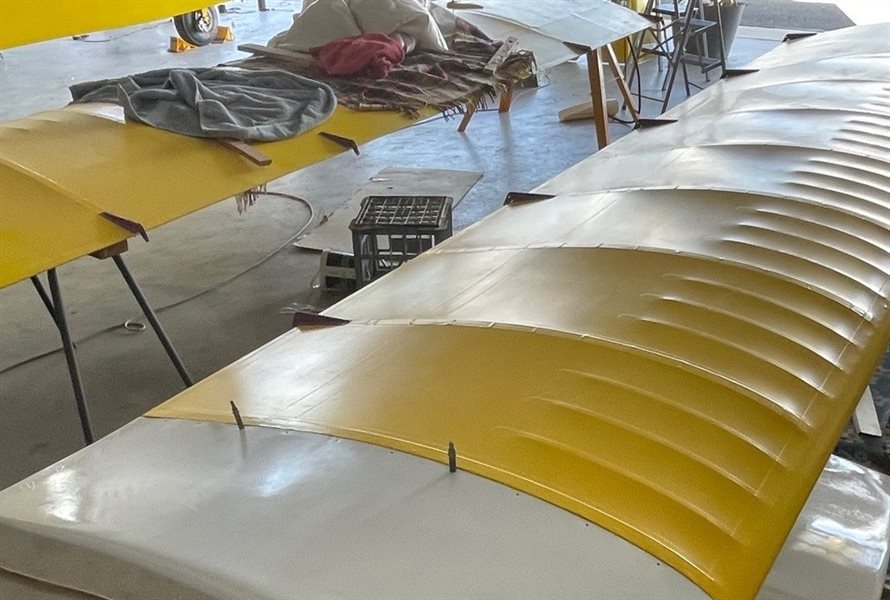

- Fibre glass wingtips painted (currently removed)

- Wing pitot tube tightened & inspection holes added to wings for maintenance

- Wing struts stripped, primed and painted with 2-pack

- Wings completed fuel line rubbers replaced April 2021 (including wings)

- All internal fuel lines replaced with 'AN' fittings

- Engine AD's (return line) completed, including recommended fuel pump attached

- Carpets cleaned

- Firewall back (trim tab lever needs castle nut/pin) and cable tie flexible brake lines etc…

- Engine suggestions: magnet plug, soft start module, hoses to clean up etc...

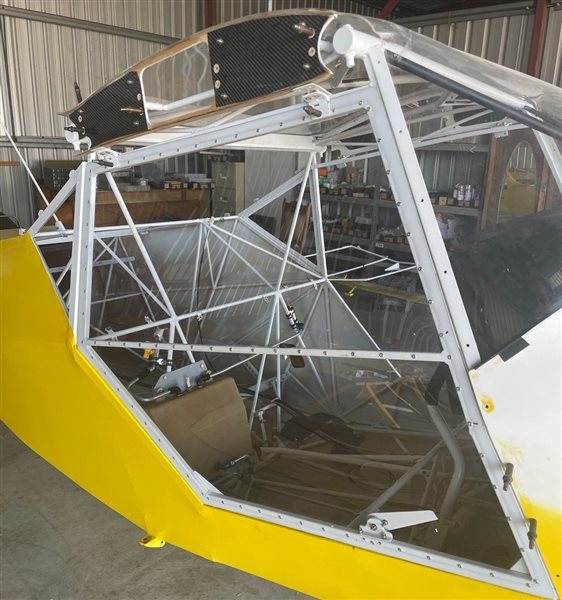

- Removed fibreglass lower door section and installed full perspex doors

- Removed locking mechanism and replaced with Kitfox style locking mechanism including 2 notch system (ajar for air ventilation)

- Re-sprayed yellow interior birdcage structure white and re-sprayed with white struts and white wing and horizontal stabiliser tips

- Avionics panel is setup for Airspeed, G5, Altimeter, UMA Tacho, MGL Blaze TP-4 EMS, MGL Blaze Vega FF-4 Fuel monitor, 660 Garmin, Garmin VHF and autopilot.

- New windscreen & roof included in sale, just arrived.

Estimated work to complete: Some assembly, 2-3 other jobs details available. All told, estimated $1000.00 plus VHF radio and intercom (50-100 hours approx.)

Cabin Width = 43 IN.
Baggage Capacity = 68kg

Stall (Flaps Full) = 37kts
Takeoff (Ground Roll) = 290FT
Landing (Ground Roll) = 290FT

Fuel: 105 litres in 2 wing tanks

Empty weight: 361kg

MTOW: 600kg

NOTE: This is a 'no-nonsense' sale please, on Vendor instructions. Sold as is. Photographs are of aircraft not fully assembled. Call for further information, logs and photos.
